Electric Wiring - Bycool SCANIA COMPACT 3.0 Instrucciones De Montaje

COMPACT 3.0
Make sure polarities are not inverted when connecting equipment to battery. If this happens, electronic control
will emit discontinuous whistles. Do not touch any key on panel or on equipment control since irreversi-
ble damages could occur. When hearing these discontinuous signals, disconnect equipment from battery and
check connection polarity.
Blower
wiring communication
Az Blue
N Black
R Red
V Green
B White
A Yellow
Na Orange
M Brown
Compressor
electronic
module
IMPORTANT WARNING!
ºC
ºF
TEMP
Wiring strip
Na
Electronic
module
10A. Fuse
50 A. Fuse
Compressor
21
Air conditioning for vehicles
ON/OFF
Battery
EN

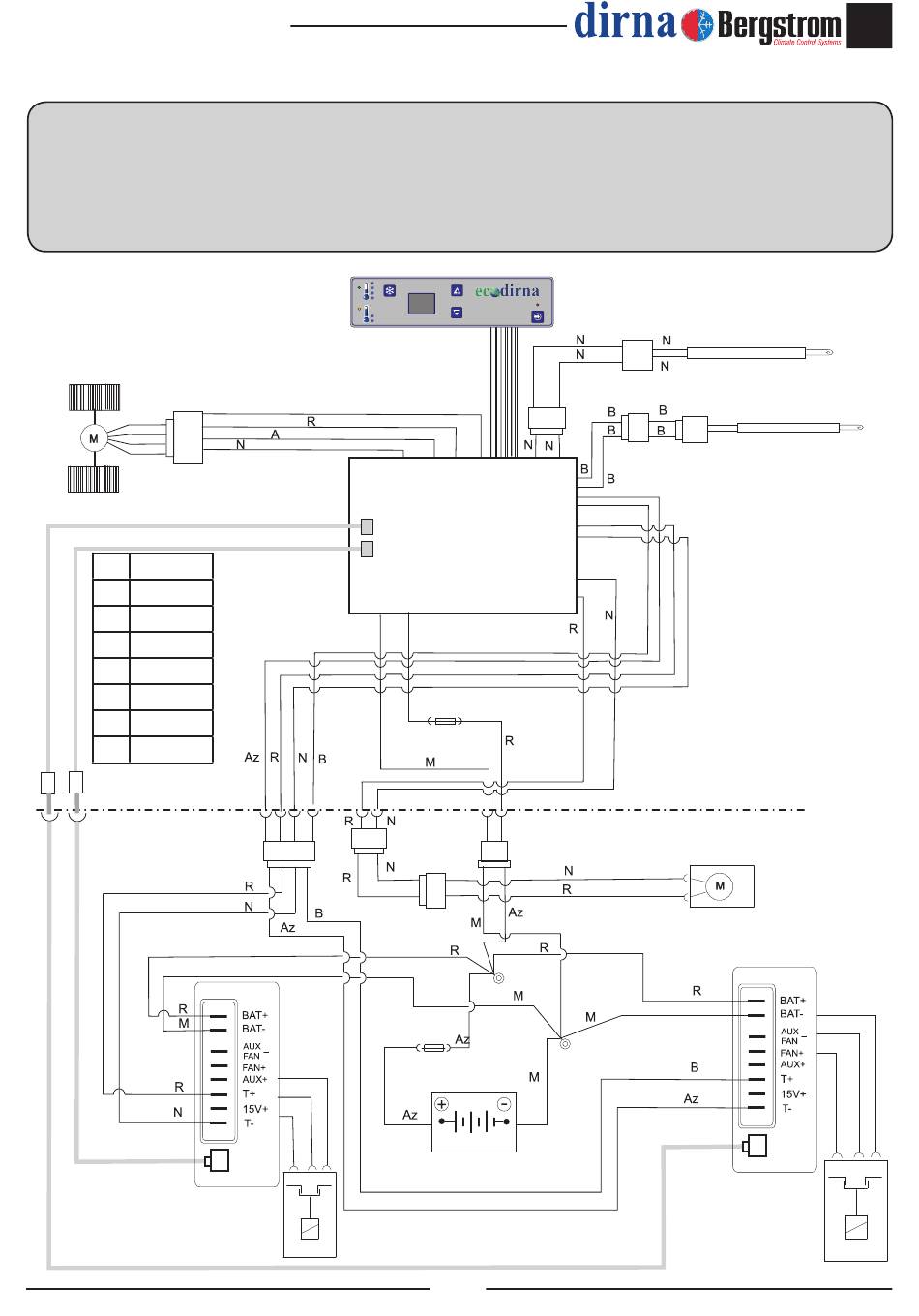

Electric wiring

Temperature
probe
Antifreeze
probe
Fan
Compressor
electronic
module
Compressor
