II. EXPLODED VIEW DIAGRAM
NOTE: Follow the instructions step by step for fastest installation. Do not securely tighten fasteners until
directed to do so.
III.
LARGE FRAME CARRIER PRE-ASSEMBLY
Place large frame carrier on a flat surface like the floor or a workbench.
If you are not installing the grille guard tube, the rubber inserts shown in Figure A can be installed at
this time. The inserts should be placed over the holes shown and aligned for best appearance then
pressed into the hole. See Figure A.
WARN

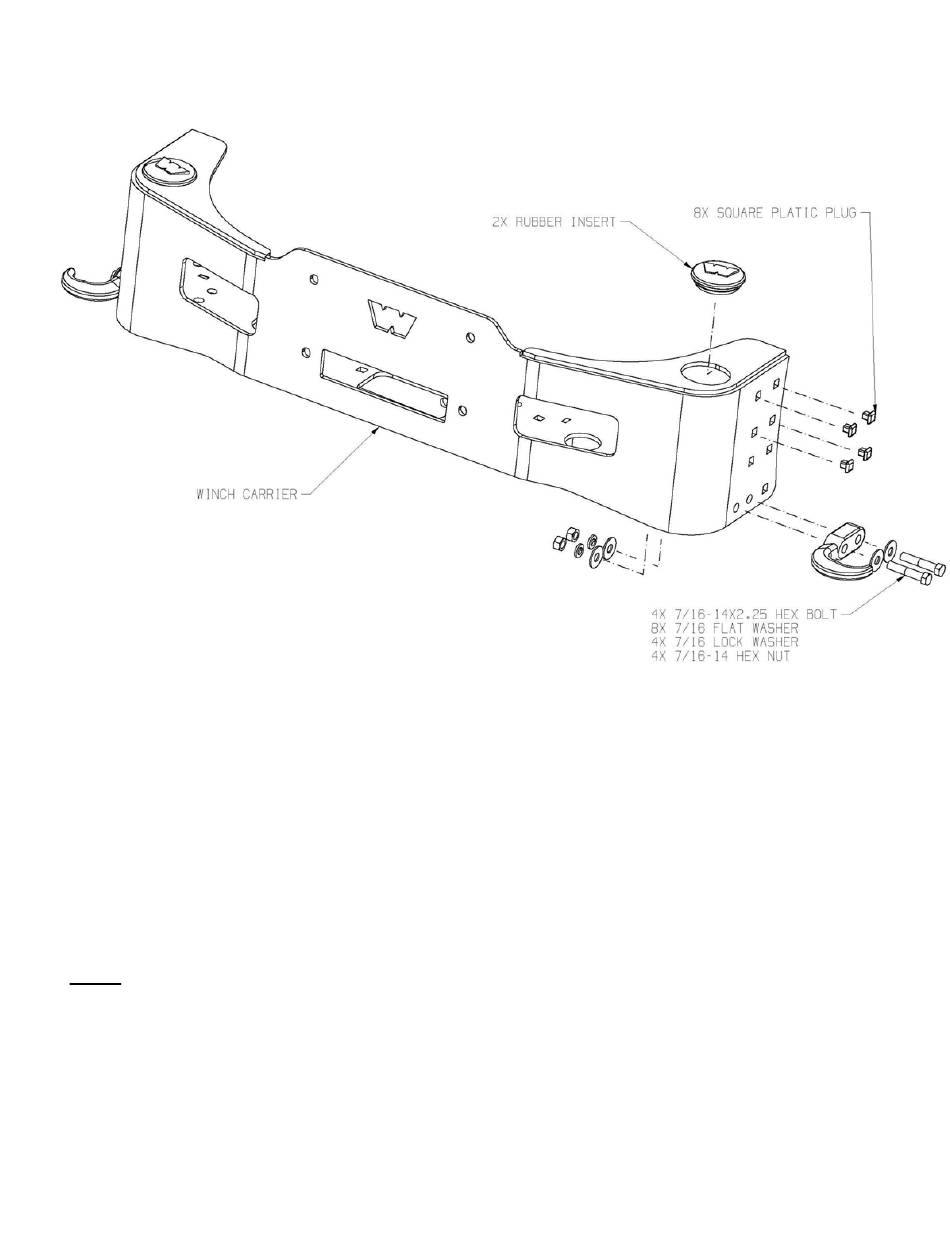

Figure A: Large Frame Exploded View

TORQUE SPECIFICATIONS

BOLT SIZE
7/16 inch

TOOLS REQUIRED

5/8, 11/16 sockets and/or wrenches
TORQUE
50 lb. ft. (67.8 N-m)
