Your sign can be mounted on a wall, ceiling, or counter.
NOTE: This sign is intended for indoor use only.
NOTE: Do not mount or attach the power supply to anything.
NOTE: Do not let the power supply hang by the cord, or dangle.
Place the power supply on a flat surface where no chemicals
or liquid, such as water, will contact it. Plug the power
supply into an easily-accessible electrical outlet no further
than 15 feet away from the sign.
NOTE: Connecting a surge protector between the electrical outlet
and the sign is highly recommended. Message data can be
lost or the sign could be damaged by power fluctuations.
NOTE: Electrostatic discharge, or "carpet shocks", can also cause
data loss and damage to the sign. Avoid touching the sign
after it's been installed, especially in cold, dry winter air.

Wall mount

1. Attach the mounting brackets to the wall or surface, 24 5/8
inches (62.7 cm) on center.
2. Attach the sign to mounting brackets using hardware as shown.
3. Plug the power cord into the sign and into an outlet.
Lock washer
Screw
Bracket
10

Installation

Washer

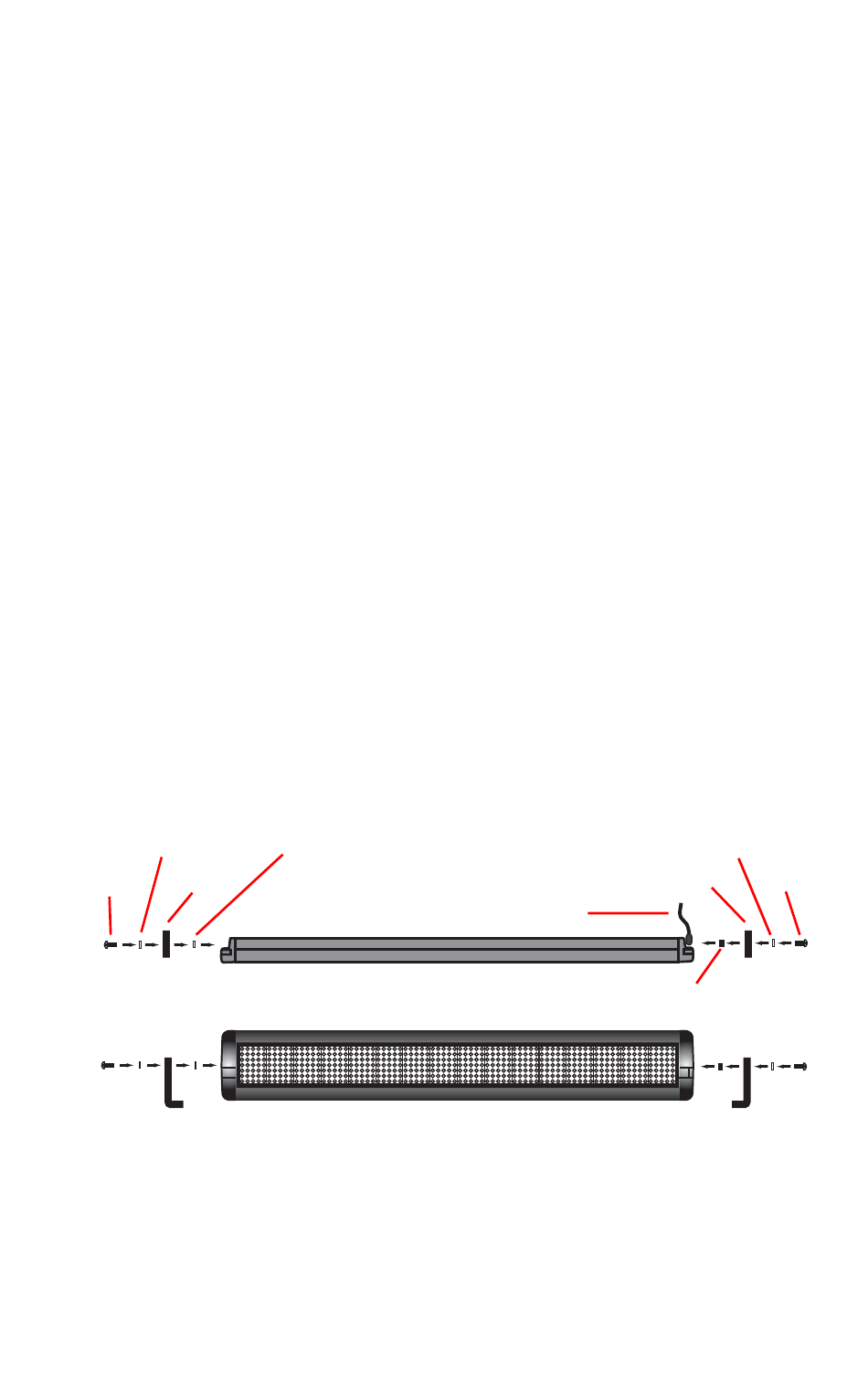

Top view
Front view
November 4, 2003
Power cord
Lock washer
Bracket
Screw
Washer
Installation
