Operating Instructions
90 Seconds Timer Operating Instructions
Your Cleaner is equipped with a 90 second DIGITAL TIMER located on the power supply
To operate it please do the following:
Switch the power supply ON pressing the main switch. The display will flash two horizontal bars.
Press the C-RUN button. The machine will start to run and the green light indicator above the C-RUN button lights up to confirm the operation.
Observe the time required for the machine to move across the pool, at its widest point from one side to another.
According to your swimming pool dimensions, adjust the timer using the time selector arrows. Up arrow will increase the number of seconds, down arrow will decrease the
number of seconds. You can choose between 5 and 90 seconds.
Now your unit will work in Continuous Operation Mode and it will stop only when the operator will turn the machine OFF from the main switch.
As an option, you can set the machine to turn off automatically after 2 hours. To do so, press the OPT button. The green light indicator above the OPT button lights up to
confirm the operation. Now that the OPT button is selected the machine will stop after 2 hours.
Please Note: In addition to the user selected operation time, the timer has a default shutdown for 5 seconds every 5 minutes.
Changing the Time Setting:
The user can change the time (0-90 seconds) at any time, even as the pool cleaner is operating in the pool.
Please keep in mind that whenever the timer is in operation, you will find the LEDs labeled "I" and "0" will be lighted alternately. The Red LED "I" indicates that the timer is in
operation for the selected (0-90 seconds) time. The Green LED "0" indicates the timer is turned off (for a default 1 second).
1
2
3
4
5
CAUTION: TO REDUCE THE RISK OF ELECTRICAL SHOCK, DO
NOT REMOVE SCREWS. NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONAL.

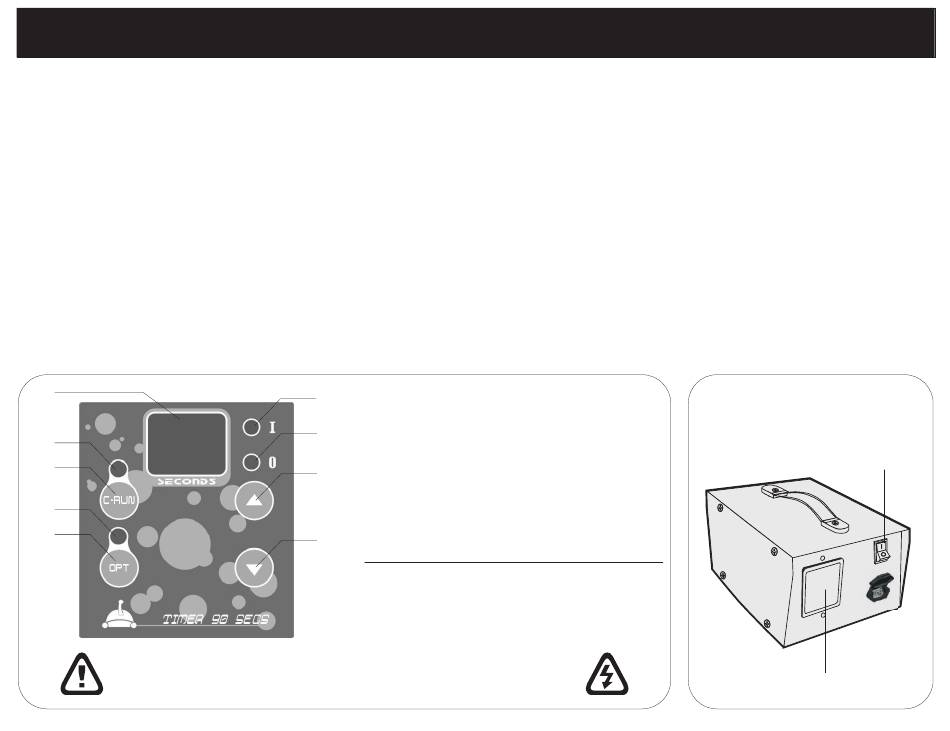

1. LED display
6
2. Continuous Operation Mode LED
3. C-RUN Continuous Operation Mode button
7
4. Timer Operation Mode LED
5. OPT Timer Operation Mode button
8 6. Timer is in operation LED
7. Timer is turned off LED
8. Time selector button increase value
9. Time selector button decrease value
9
Input Rating: 230 V ~ 50Hz. / 230 W / 1.25A.
Output Rating: stepped down to 36V ~ 50Hz. @ 6A.
Fuse Rating: 1.25A, 250V SLOW BLOW.
