Device overview
4 Device overview

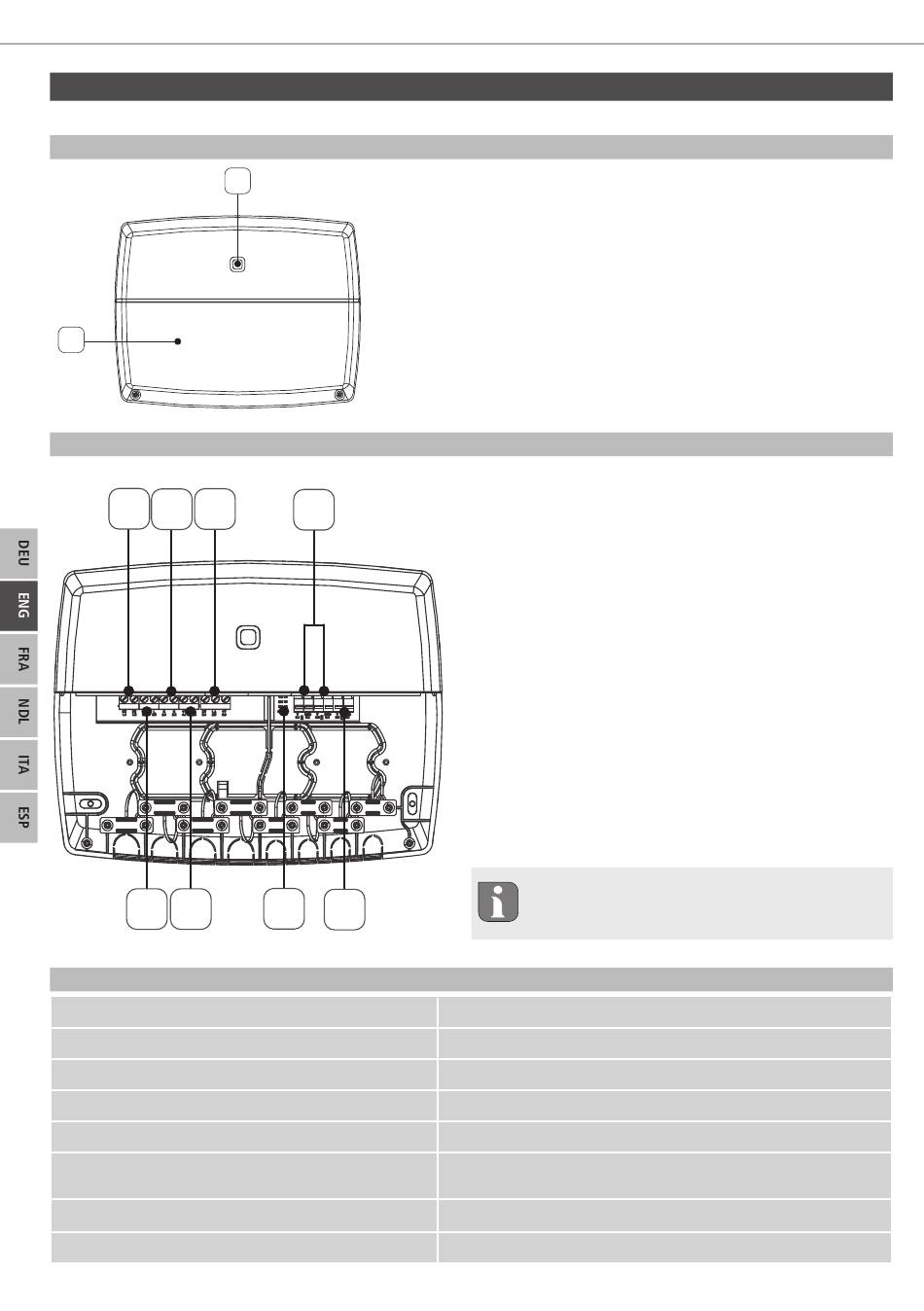

4.1 Operating elements
B
4.2 Connections
C
D
G
H
4.3 Technical data
Short designation of the device
Supply voltage
Power consumption
Max. switching power, output 1
Max. switching power, output 2
Line type and line section
Protection type
Protection class
18
A
E
F
I
J
(A)
System key (teach-in key and LED)
(B)
Cover
(C)
Connection terminals for PE (earthing conductor)
(D)
Connection terminals for N (neutral conductor)
(E)
Connection terminal block 5 (changeable: 2 =
closing contact / 1 = opening contact.
e. g. for the connection of recirculating
pump, air dehumidifier, CO pilot)
(F)
Connection terminals for IN1/IN2 (heating,
cooling or ECO operation, temperature
limiter or humidity sensor)
(G)
Connection terminals for L (external conductor)
(H)
Connection terminal 4 (e. g. for connection of
boiler, air dehumidifier, CO pilot)
(I)
LEDs for connection display: Pump (5.2), boiler
(4.2), status input 1 (IN1), status input 2 (IN2),
power supply (PWR) and change-over status
(C/O)
(J)
Connection terminal for AOUT (0-10 V output)
Connection terminal AOUT (J) is currently
without function.
MIOB 21001-xx
230 V / 50 Hz
max. 16 A
3680 W, cosφ ≥0.95 (potential-free)
1840 W, cosφ≥0,95 (potential-free)
solid and stranded cables
0.75 – 2.5 mm²
IP20
I
