Guía del usuario

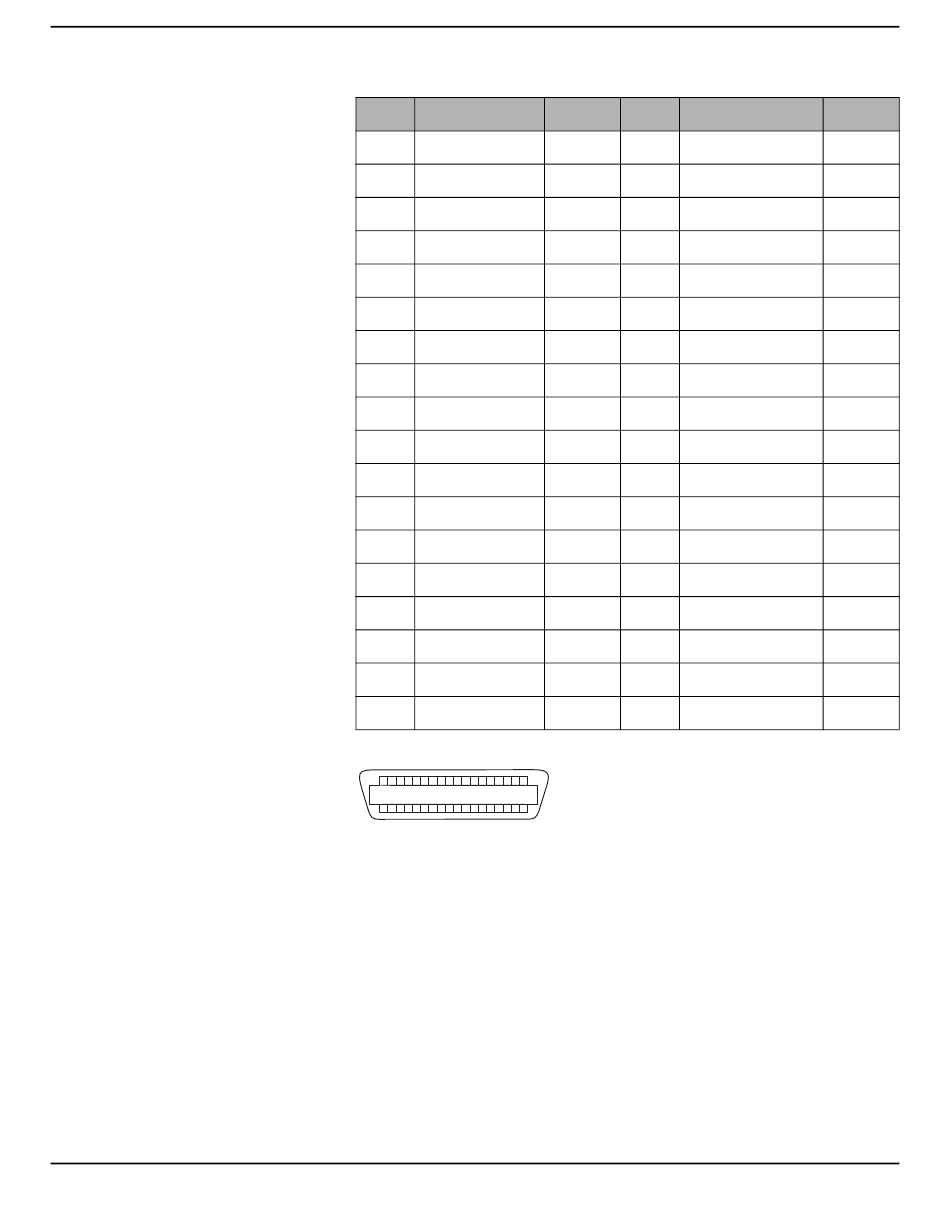

Modo ECP

Patilla Señal
1 HostClk
2 DATA0
3 DATA1
4 DATA2
5 DATA3
6 DATA4
7 DATA5
8 DATA6
9 DATA7
10 PeriphClk
11 PeriphAck
12 nAckReverse
13 Xflag
14 HostAck
15 NC
16 Signal GND
17 Chassis GND
18 +5V DC
18 1
36 19
In/Out Patilla Paralelo
In 19 Signal GND
Bi-Di 20 Signal GND
Bi-Di 21 Signal GND
Bi-Di 22 Signal GND
Bi-Di 23 Signal GND
Bi-Di 24 Signal GND
Bi-Di 25 Signal GND
Bi-Di 26 Signal GND
Bi-Di 27 Signal GND
Out 28 Signal GND
Out 29 Signal GND
Out 30 Signal GND
Out 31 nReverseRequest
In 32 nPeriphRequest
33 Signal GND
34
35 +5V DC
Out 36 1284Active
Distancia de transmisión máxima: 2,0 m
Interfaces
In/Out
In
Out
NC
Out
In
137
