S&P CADB-N-D Instrucciones De Uso página 24

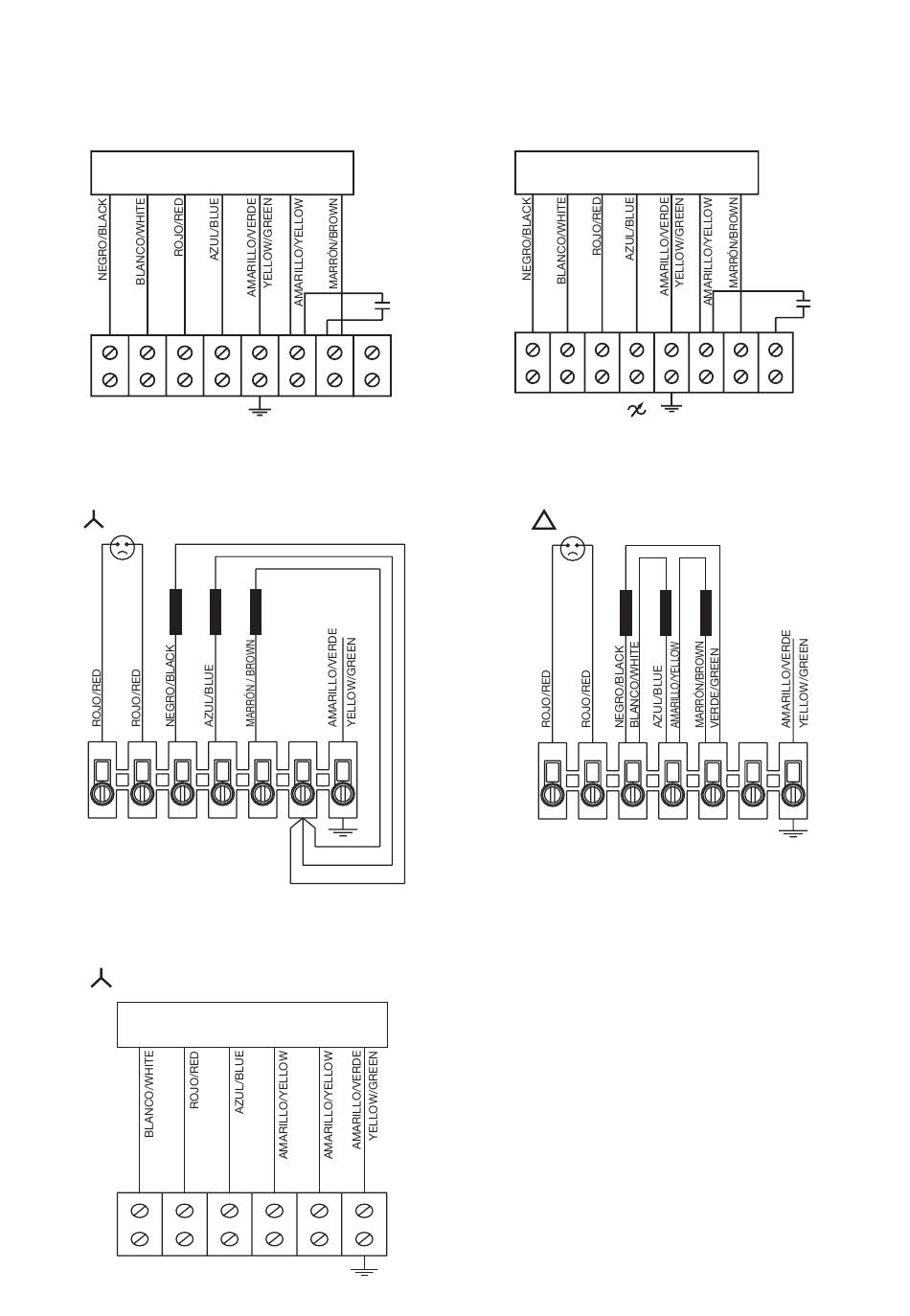

Models 12, 18, 23 and 30
FACTORY WIRING
FOR DIRECT SUPPLY
MOTOR
V2 V3 N
V1
Models 45 and 55
400V
FACTORY WIRING
TP TP R S
Model 80
400V
FACTORY WIRING
MOTOR
R S T
T
AMARILLO/YELLOW
BLANCO/WHITE
VERDE/GREEN
TP TP
WIRING WHEN USED WITH A
3 WIRES VOLTAGE REGULATOR
MOTOR
N
230V
TP TP
24
L (230V)
R S T
