INSTALLATION OF THE RF SYSTEM
For maximum radio sensibility, the active antenna must be placed at a minimum of 0.50 cm of any metallic surfaces (Electrical Box) or vertical metallic
pipes.

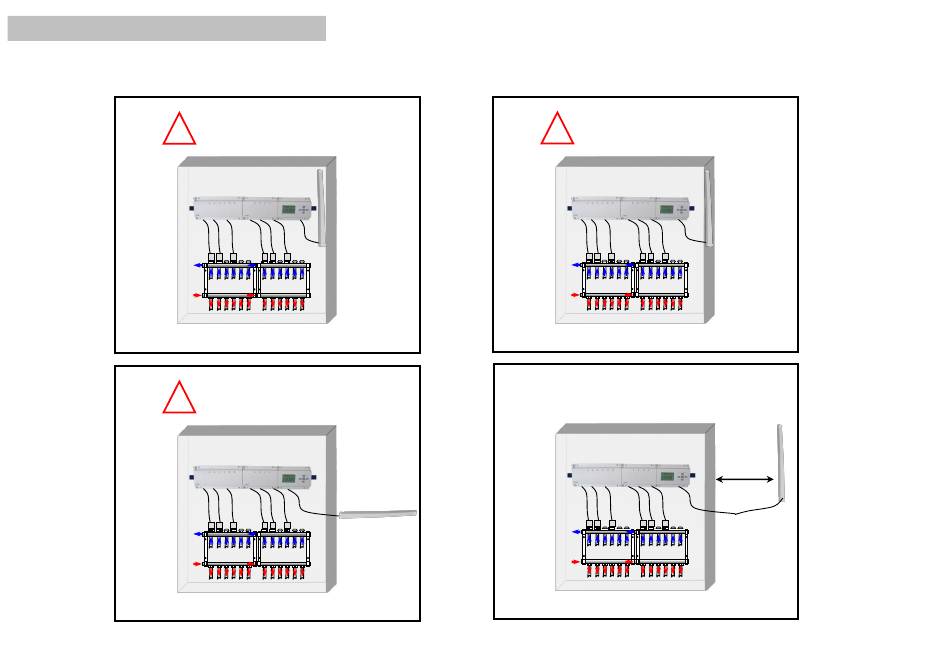

How to connect correctly your RF SYSTEM
!
!
The active antenna must not be
placed inside the metallic box.
Metallic Box
X
Active antenna
RF System
The active antenna sensitivity will be
reduced if mounted in horizontal
position.
Metallic Box
RF System
Active antenna
X
The active antenna must not be
!
mounted on the metallic box.
Metallic Box
X
Active antenna
RF System

The active antenna must be mounted
vertically.
Active antenna
Metallic Box
Distance
RF System
min. 50 cm
