DMP8800
DSP

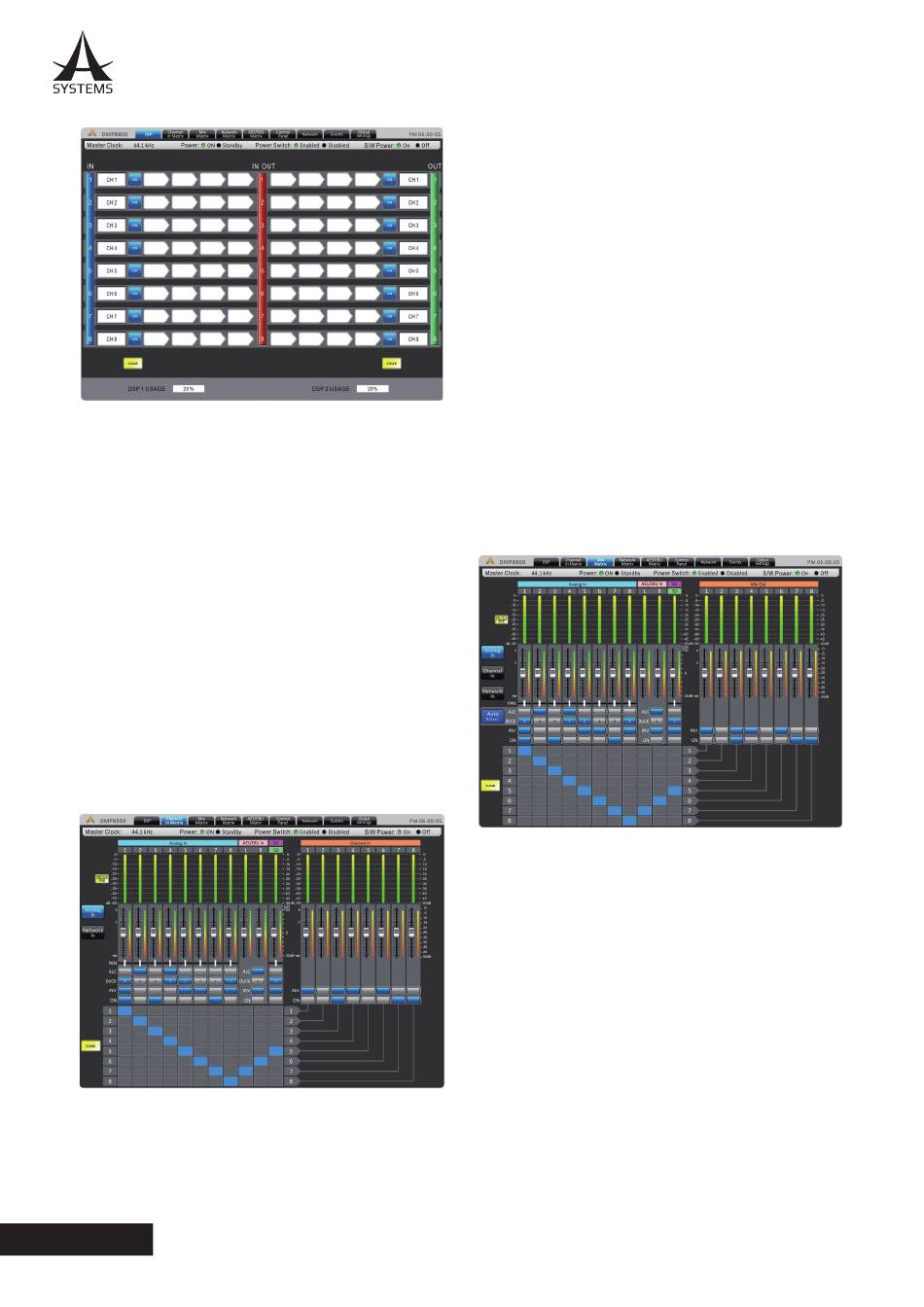

The DSP page will give you an overall idea of input
and output mixes (including levels and naming) as well
as offer a manner to view and edit the current signal
processors assigned to input and output channels�
Name: Edit the name for each of the individual input
channels�
On/Off: Use this button to switch the corresponding
input channel on and off�
Processing: These buttons allow you to inject any of the
DMP8800's internal signal processors right into the input
chain� Processing will be accomplished in order from left
to right� For more information on the available programs,
check the Signal Processor section of this manual
Reset Button: Pushing these buttons will reset the DSP
parameters for the input or output, including name, on/off
status, and selected signal processors� There is a reset
button available for each the input and output�
Monitoring: The DMP8800 software offers extensive
monitoring for DSP performance� The percentage of the
processor used will be visible at the bottom of the page�
Channel In Matrix
This page offers matrix mixing for the Analog, Network
and AES/EBU inputs to the Channel Input mixes� Any
of the input sources can be assigned to the individual
"Channel Input" mixes� These include the Analog Inputs
(euroblock & RCA), Network Inputs (optional Network
expansion card) and the digital AES/EBU input.
English
Each of the possible input matrix sources can have a
number of controls available� These include:
Attenuation: Adjust the input level of each of the
individual signals�
Panning: These will let you adjust the left/right mix of the
incoming signals�
ALC: This button will assign the DMP8800's Auto Level
Control to the corresponding input signal�
Duck: Pushing this button will apply the ducking feature
to the corresponding input signals� The duck function can
be activated as ducker 1, ducker 2, or off, the settings of
which are decided by their respective menus�
INV: This button will invert the phase of the corresponding
signal�
On: This button allows you to turn the corresponding
input signal on and off� When turned off, the signal will
not be sent to the Input Channels selected�
Routing: Each of the 8 analog inputs, 8 network inputs,
and the stereo AES/EBU Input, can be assigned to the
DMP8800's 8 input channels� These input channels are
what will be used for the DSP processing and will be then
routed to output mixes�
Mix Matrix
Each of the 8 input channels, the 8 matrix inputs and the
8 network inputs can be assigned directly to any of the
8 matrix outputs�
Attenuation: Adjust the input level of each of the
individual input signals or matrix mixes�
Panning: These will let you adjust the left/right mix of the
incoming signals�
ALC: This button will assign the DMP8800's Auto Level
Control to the corresponding input (channel in, matrix in,
network in, AES/EBU in).
Duck: Pushing this button will apply the ducking feature
to the corresponding mix� The duck function can be
activated as ducker 1, ducker 2, or off, the settings of
which are decided by their respective menus�
INV: This button will invert the phase of the corresponding
input or matrix signal�
On: This button allows you to turn the corresponding
input signal on and off� When turned off, the signal will
not be sent to any of the matrix outputs selected�
