When spot-welding is selected (LED L) this LED lights to
indicate that the display H displays the spot welding time
that may be adjusted using the knob O from 0.1 to 3 sec-
onds.
14
AO - Pre-gas LED
Adjustment 0.05-2.5 seconds. Gas
output time before starting weld-
ing.
AP - Welding start current LED.
Welding start current. This is a per-
centage of the welding current
(LED X).
S - Slope up LED .
This is the time in which the cur-
rent, starting from the minimum,
reaches the set current value. (0-10
X - Main welding current LED .
W - Second level of welding or
base current LED.
This current is always a percentage
of the main current.
T - Pulse frequency LED (0.16-
550 Hz).
The peak and base times are
equal.
AM - Hot-Start LED
May be selected via the button R only if MMA welding is
selected (LED B).
This LED lights to indicate that the display P displays the
time, expressed in seconds, during which the welding
machine delivers an overcurrent to improve electrode start-
ing. It may be adjusted using the knob O.
AN - Arc-force LED
May be selected via the button R only if MMA welding is
selected (LED B).
It is a percentage of the welding current. The display P dis-
plays its value, and the knob O adjusts it. This overcurrent
essentially aids in the transfer of drops of molten metal.
AC
AD
AG
AD
AC

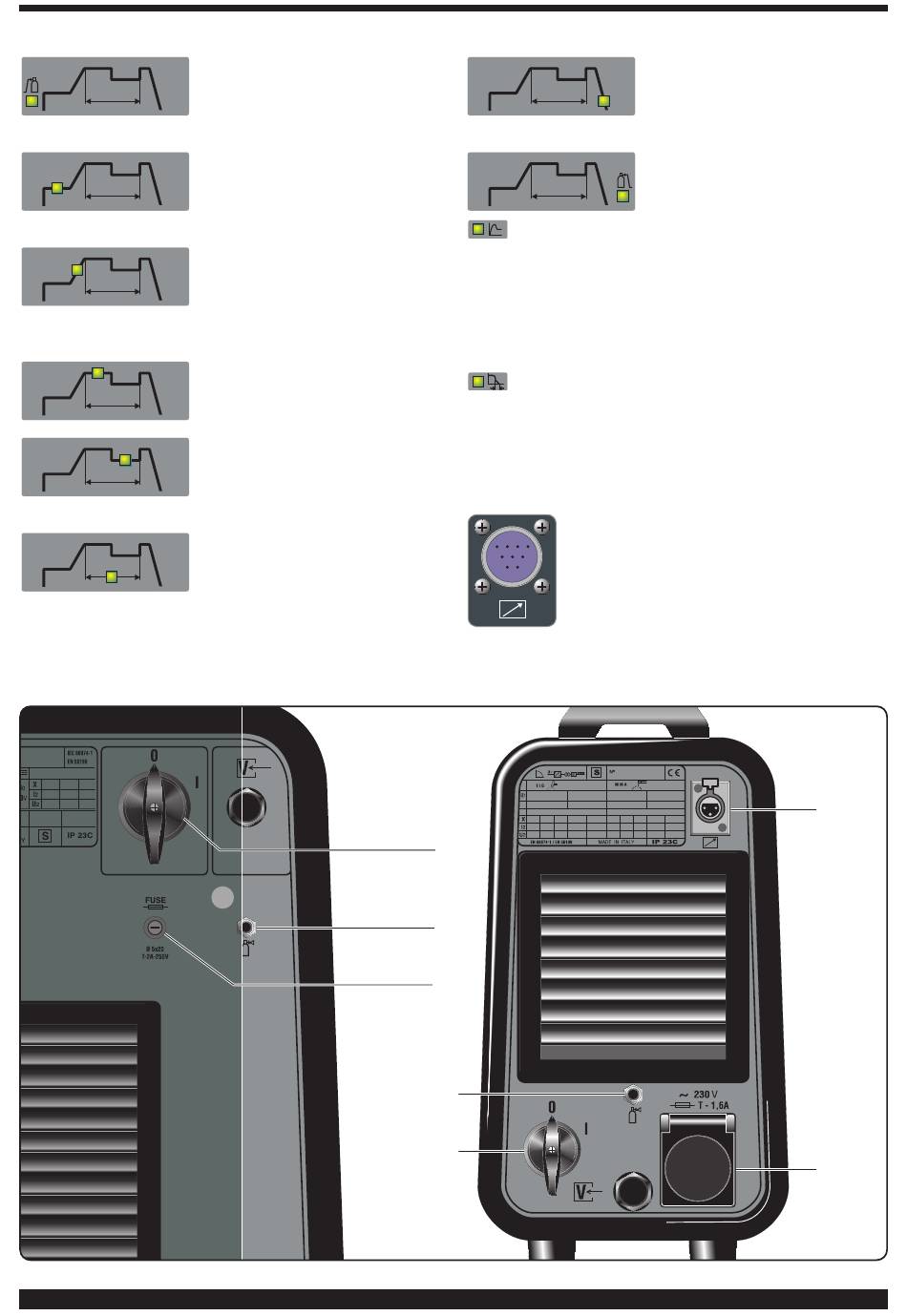

Fig. 2
U - Slope down LED.
This is the time in which the current
reaches the minimum value and the
arc shuts off. (0-10 sec.)
V - Post gas LED.
Adjusts the time gas flows after
welding ends. (0-30 sec.)
Y - 10-pin connector
This connector is connected to the remote
controls described in paragraph 4.
A clean contact is available between pins 3
and 6 to signal when the arc is lit (5A 230V).
