INSTALLATION INSTRUCTIONS

SCREENS WITH VESA MOUNTING POINTS:
1. Identify VESA standard on the paper template that
matches the screen. For example, small screens will
have mounting holes 100mm x 100mm apart in a square
formation on the rear. This layout will be found on the
small paper template included.

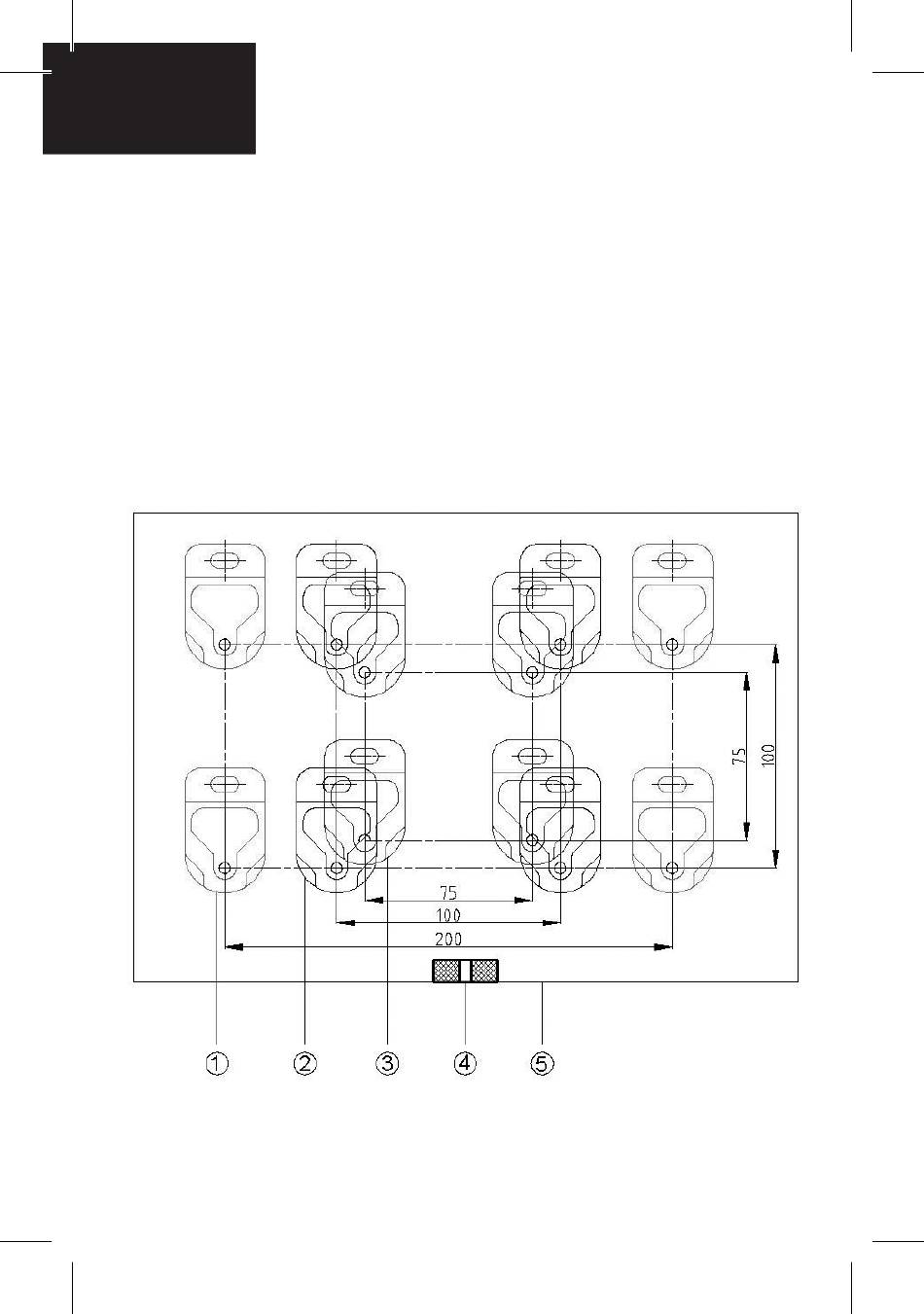

4
1. VESA 200×100
2. VESA 100×100
3. VESA 75×75
4. Spirit Level
5. Size 297×210
