bottom means the ALT Mag time.
X-Y Format
This format is useful for studying phase relationships between two signals. Channel I in
the horizontal axis (X) and channel 2 in the vertical axis (Y)
The following modes or functions will not work in X-Y format.
■
Automatic Measurements
■
Cursor Measurements
■
REF and MATH Operations
■
Horizontal Position
■
Trigger Controls

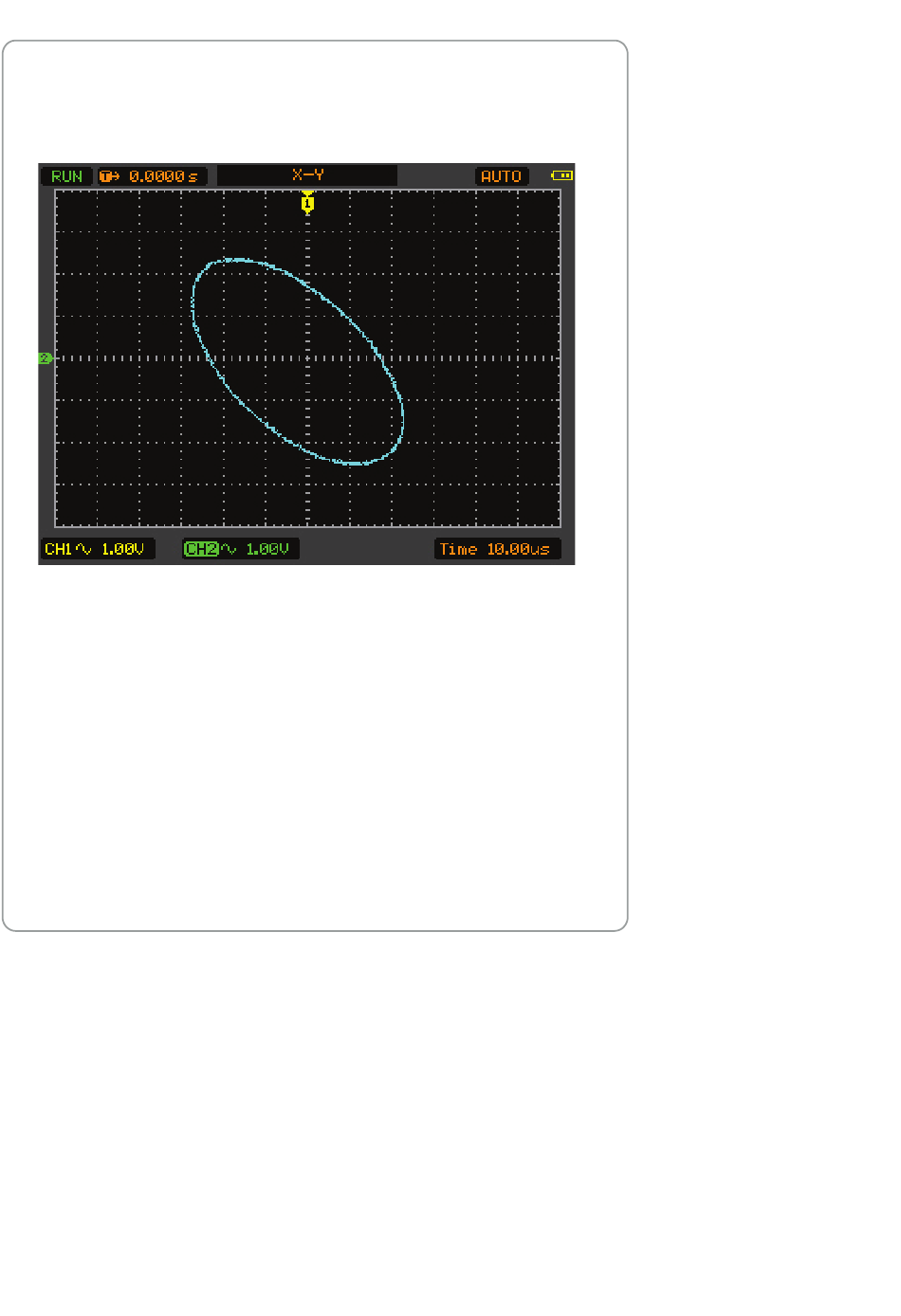

Figure 2-25 X-Y display format
35
