15 Starting up HandyTIG 180 DC BasicPlus

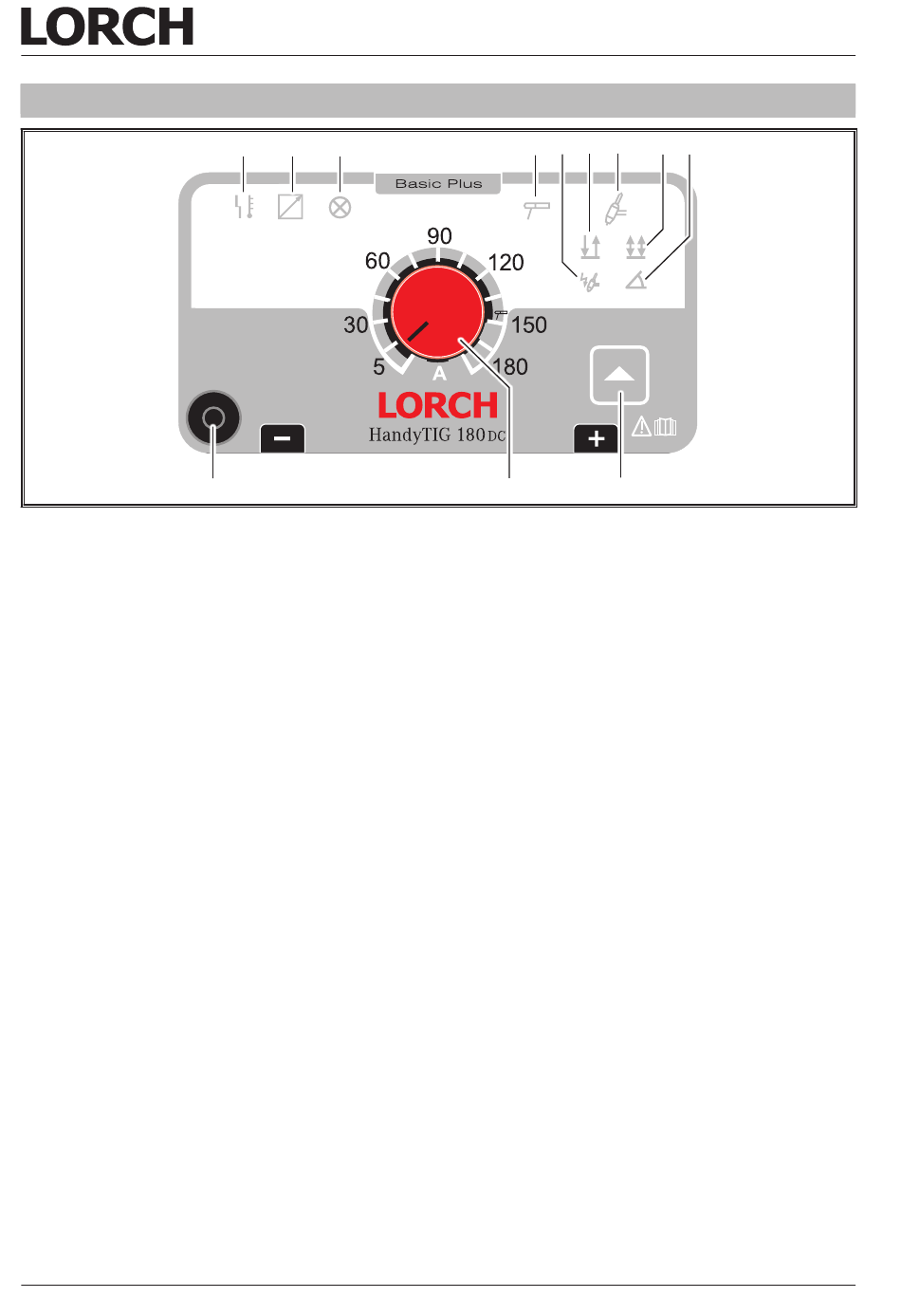

Abb. 17: Control console 180 DC BasicPlus
Torch control socket
9
plug the torch control plug into this socket.
LED malfunction
35
is lit constantly when the machine is over-
heated, LED flashes in case of a malfunction.
Ignition of an arc is not possible.
The LED flashes in a self-test mode directly
after switching on the machine.
LED Remote
36
Hand remote connected:
LED lights up permanently, turning knob welding
current 45 without function, adjustment only pos-
sible at hand remote control.
Foot remote connected: LED lights up by activa-
tion of foot remote, turning knob 45 predefines
the maximum value for the adjustment range of
the foot remote. If i.e. 100A are set,
5A – 100A can be recalled with the foot remote.
LED mains
37
is lit when the machine is operational.
LED MMA mode
38
is lit when MMA mode is selected.
LED HF
39
s lit when the HF function is activated, for con-
tactless ignition.
LED 2-stroke
40
is lit when 2-stroke mode is selected (only in
TIG mode)
press torch button = arc is ignitted
release torch button = arc goes out
LED TIG
41
is lit when TIG mode is selected.
- 36 -
35 36 37
9
Starting up HandyTIG 180 DC BasicPlus
38 39 40 41
45 44
LED 4-stroke
42
is lit when 4-stroke mode is selected (only in
TIG mode).
press torch button = ignition current flows
release torch button = welding current flows
press torch button = end current flows
release torch button = arc goes out
LED slope
43
is lit when function slope is activated.
2-stroke - at the start of the weling process the
machine rises the current from ignition current
to the selected welding current (upslope). At
the end of the welding process the machine
decreases the current from welding current to
min. current (downslope).
4-stroke - at the start of the weling process the
machine rises the current from start current to
the selected welding current (upslope). At the
end of the welding process the machine de-
creases the current from welding current to end
current (downslope).
Mode key
44
is used to select the different modes/functions.
Knob welding current
45
is used to set the desired welding current.
42 43
